1. Create Object
Cellular Expert supports several coordinate formats:
- Projected coordinate.
- Decimal Degress Geographical coordinate.
- Degrees Minutes Seconds Geographical coordinate.

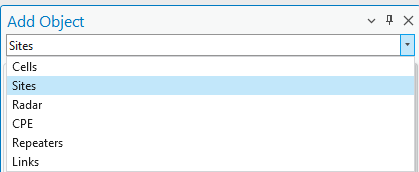

Workspace should be created, if not - preview Create Workspace topic. Open Add Object tool and select Sites.
1.1. Click On Map

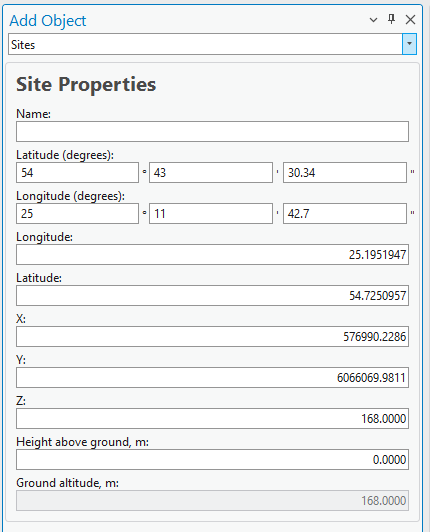

The location of Site object can be taken from the left mouse click on the map. Then coordinates will be filled automatically based on clicked location.
If needed, coordinates can be adjusted directly in the dialog.
- Define Site name in Name parameter.
- Define Site height in meters (if needed) in Height above ground parameter. This is the height above the terrain.
Z coordinate is used in 3D map for object visualization. This is the sum of Ground altitude and Height above ground parameters.
Press Save Changes to save Site object in database.
1.2. From the defined coordinates

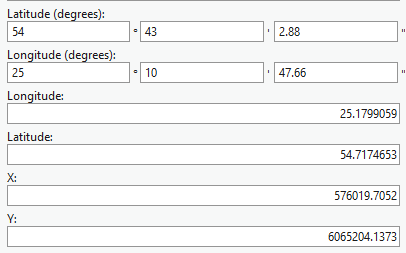

The coordinates can be added directly in the dialog. As an example, if you have Latitude and Longitude, then paste them directly in the dialog.
Other coordinate formats will be automatically filled.

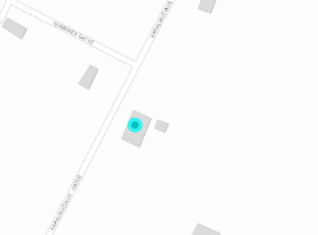

And Object will be created on the map.
Press Save Changes to save object parameters in the database.
